Fibrofor Diamond
The high-performance monofiber for industrial floors
Primary concrete reinforcement
We have developed Fibrofor Diamond to eliminate steel reinforcement completely or at least reduce it to a minimum, even in floors with very high loads. Fibrofor Diamond is a high-performance monofiber for primary concrete reinforcement. The geometry and tempering ensure fast, even distribution and mixing in the concrete, while the uniquely high fibre count ensures optimized three-dimensional reinforcement.
The recommended dosage of Diamond is 2 – 3 kg per m³ of concrete. The dosage depends on the area of application and the requirements and is determined by means of a static calculation.
Dosage
The recommended dosage for Fibrofor Diamond is between 2,0 – 3,0 kg per m3 of concrete.
Application
- Industrial flooring
- Inside flooring
- External slab
- External area
- Reduction of depth water penetration
- Reduction of plastic shrinkage
Properties
| raw material | Polyolefine |
| density | 0,91 kg/dm3 |
| resistance to acids/alkali | inert |
| composition | foil fibre |
| form | monofibre |
| length | 38,0 mm, Toleranz +/- 5 % |
| width | 0,90 mm |
| foil thickness | 0,042 mm |
| Tensile strength | ≈ 400 N/mm2 |
| E-Modul | ≈ 9 500 N/mm2 |
| softening point | ≈ 150° C |
| colour | white |
| number of fibres per kg | ≈ 750 000 |

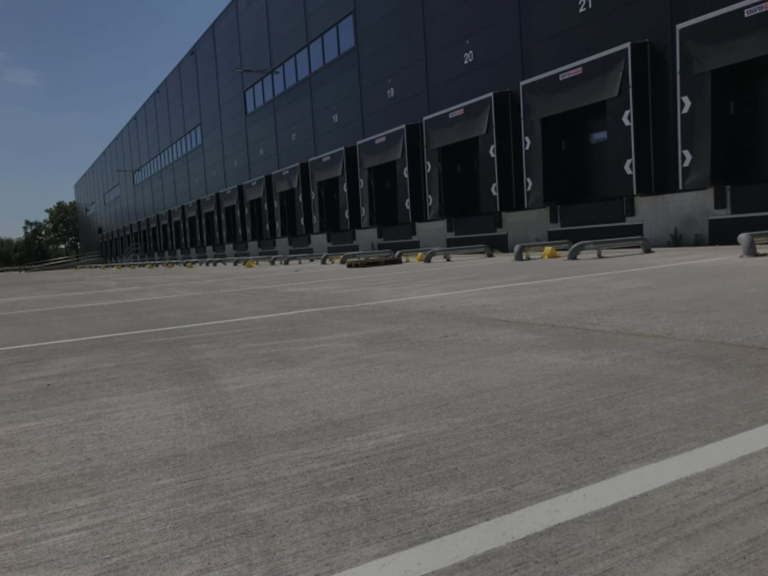

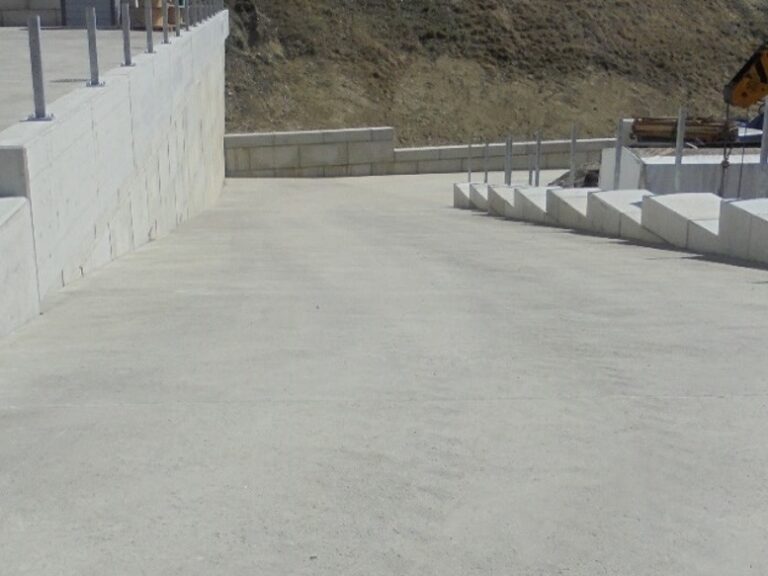

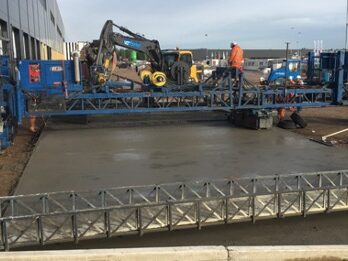

References Fibrofor Diamond
